Integral/Semi-Integral Abutments: Cracking In Deck

Integral/Semi-Integral Abutment Defects: Cracking In Deck

Diagonal cracking in deck at integral autment

CAUSES

Common occurrence; cause not known
Unusual movement or settlement of bridge

RECOMMENDED REPAIRS	INITIAL COST	EXPECTED LIFE
Do nothing
1/4" or less - Epoxy Injections	$20.00/LF	30 years
1/4" or greater	$35.00/LF	30 years

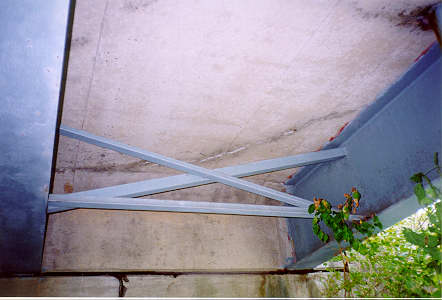

EXAMPLE
