Stub Type Abutment Defects:  Settlement


CAUSES

RECOMMENDED REPAIRS INITIAL COST EXPECTED LIFE
  • Do nothing
    		•
  • Raise abutment seat with shims or concrete
    		•  $10,000 Each 15 years
  • Make abutment integral
    		•  $20,000 Each 15 years
  • Replace
    		•  $50,000 Each 40 years

    EXAMPLE

    Raise abutment seat by shimming

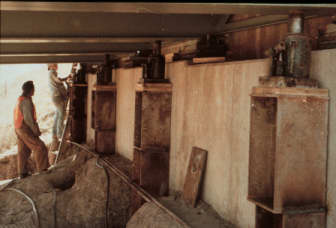

    Shimming beams

    Making abutment integral
