Wall Type Abutment Defects:  Leaning

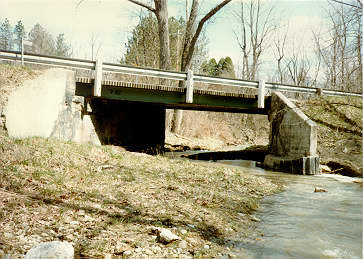

Wall leaning due to undermining

CAUSES

RECOMMENDED REPAIRS INITIAL COST EXPECTED LIFE
  • Do nothing
    		•
  • Remove trees from embankment
    		•  $500/LF  10 years
  • Underpin
    		•  $200/LF  15 years
    • Replace
    		$800/LF  40 years

    EXAMPLE

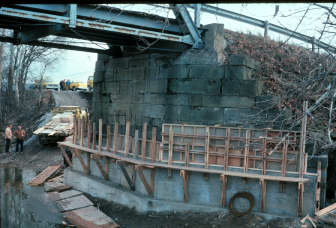

    Abutment underpinning
