Sliding Plate Expansion Joint Defects: Cracked Sliding Plate
CAUSES
Corrosion of sliding plate
Vertical misalignment of joint sections
RECOMMENDED REPAIRS
INITIAL COST
EXPECTED LIFE
Replace sliding plate by welding to underlying angle through slots in new plate
$75/LF
15 years
Replace entire expansion joint assembly
$200/LF
25 years

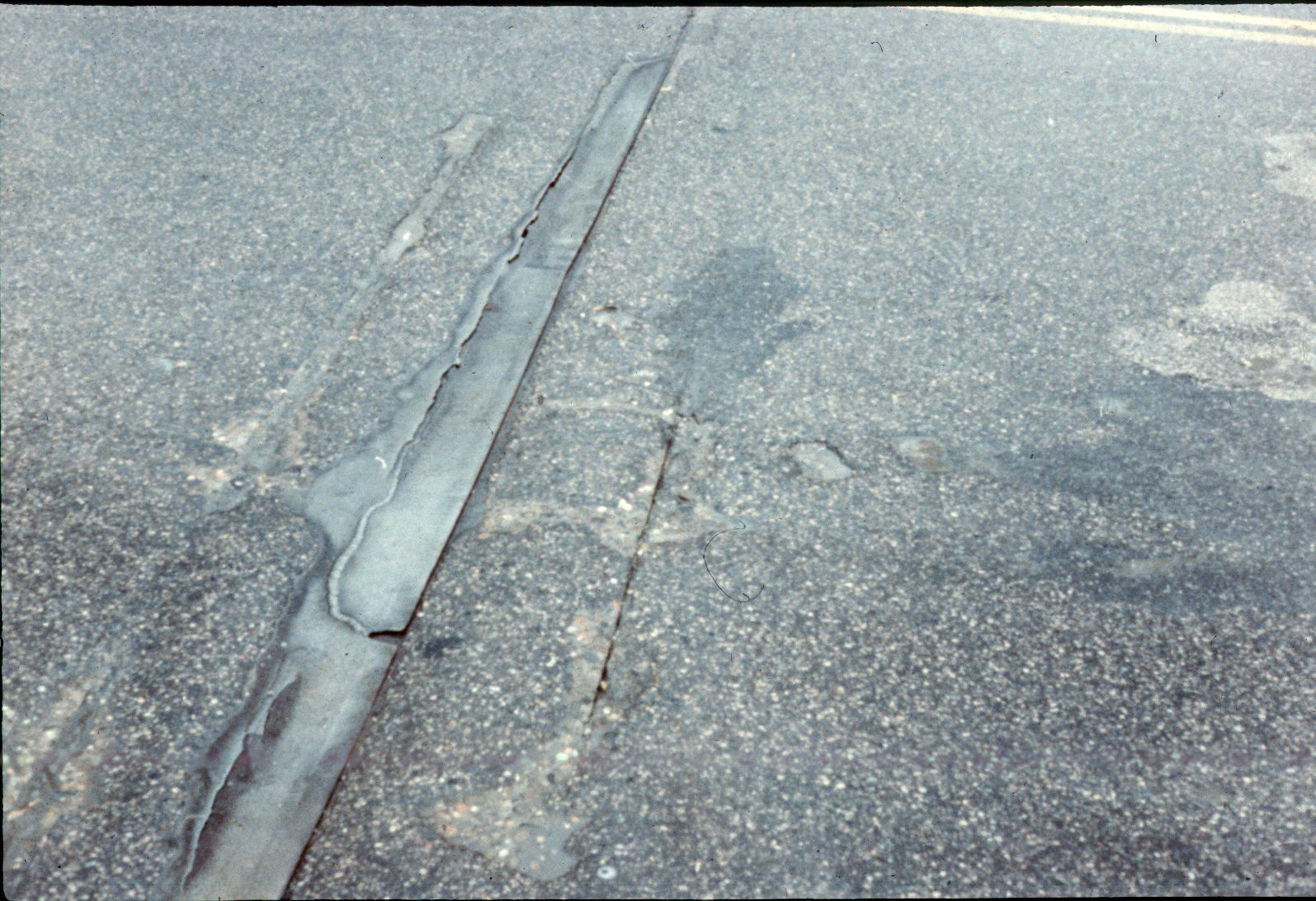

EXAMPLE
