Neoprene Compression Seal Expansion Joint Defects: Neoprene Seal Falls Out

CAUSES

RECOMMENDED REPAIRS INITIAL COST EXPECTED LIFE
  • Replace neoprene with a larger size
    		•  $15/LF 10 years
  • Replace neoprene in-kind
    		•  $15/LF 10 years
  • Reinstall seal with new adhesive
    		•  $10/LF 10 years

    EXAMPLE

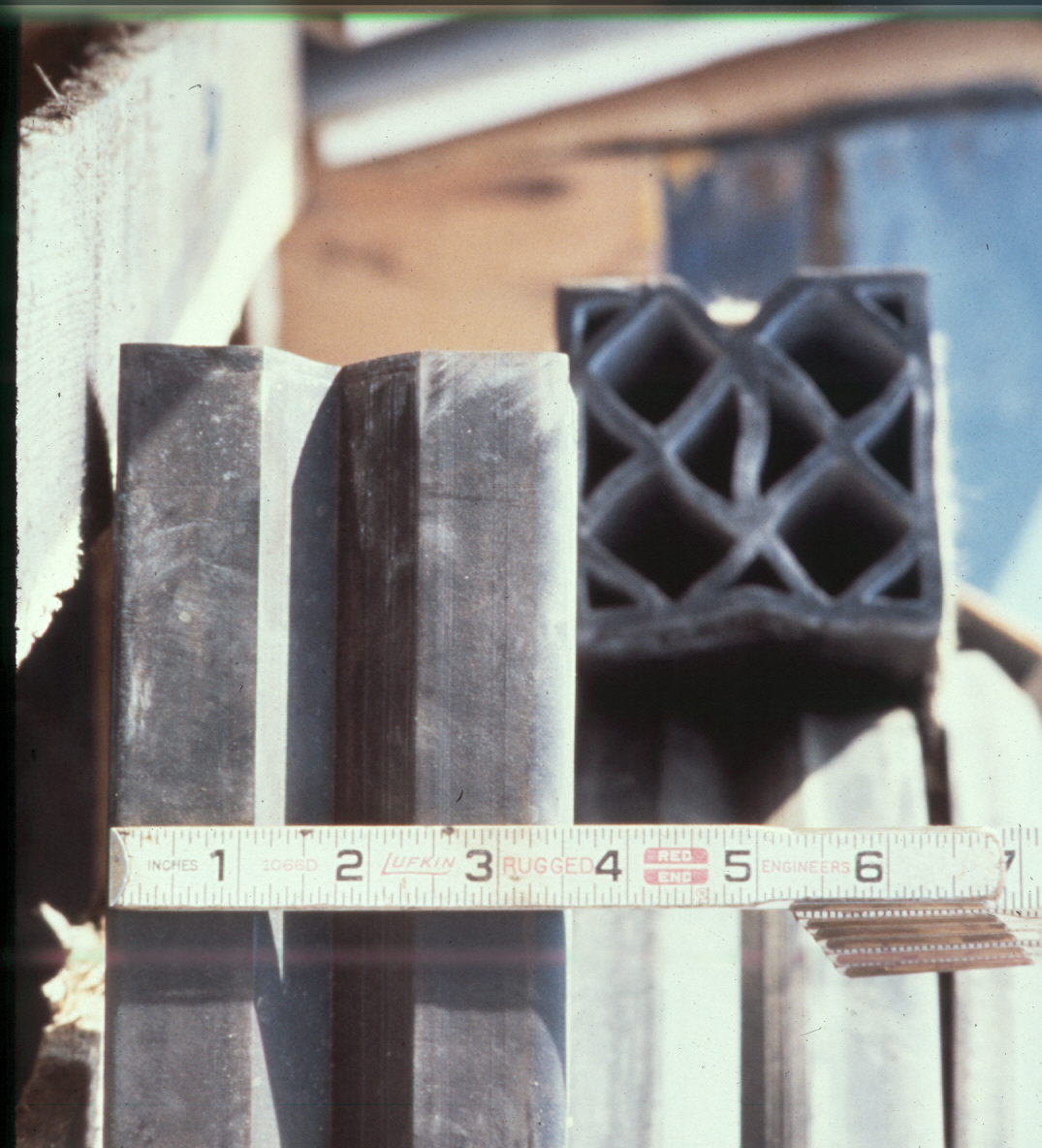

    Uncompressed seal

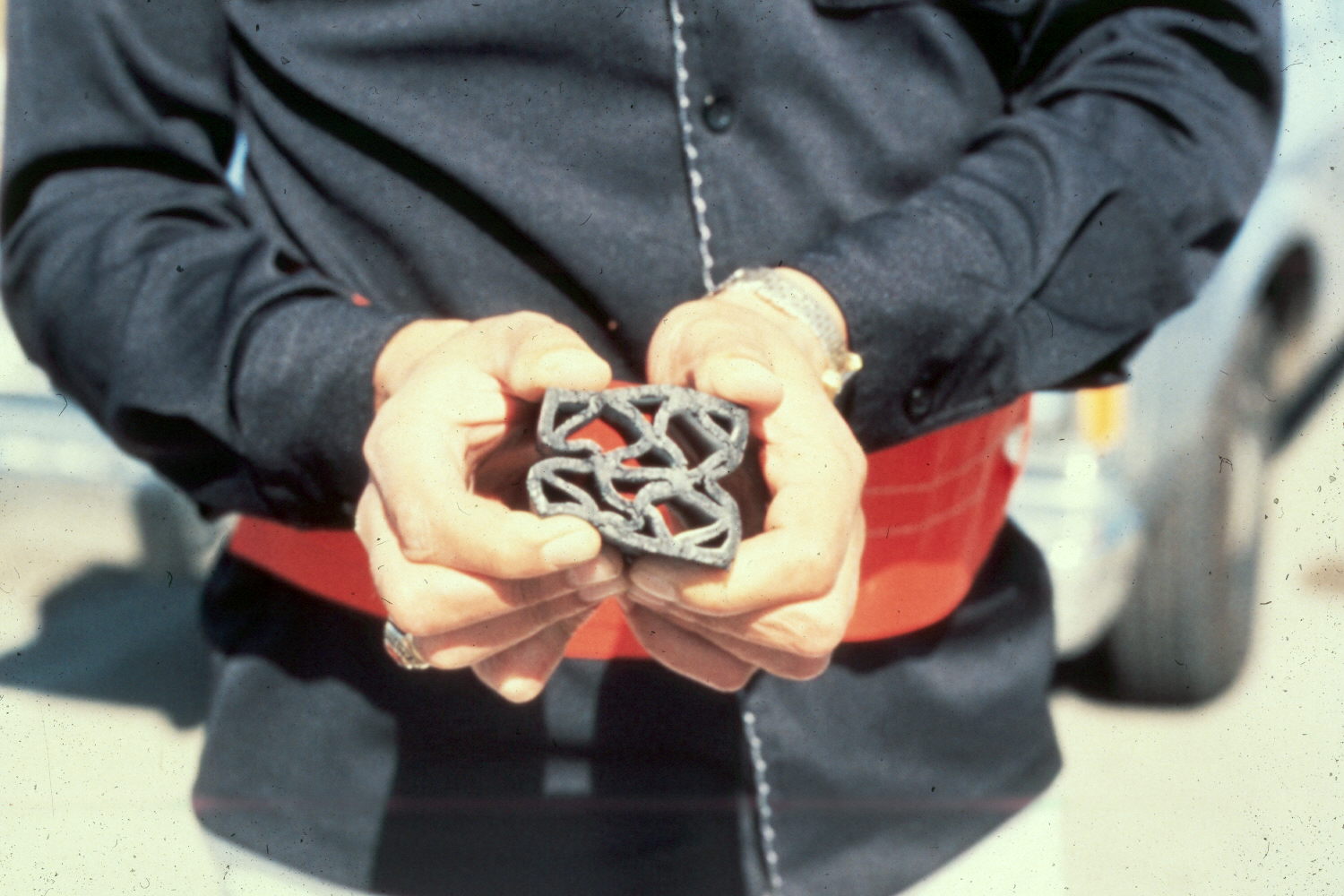

    Compressed seal
