Capped Pile Type Pier Defects:  Corrosion of Steel Piling at Water or Ground Line

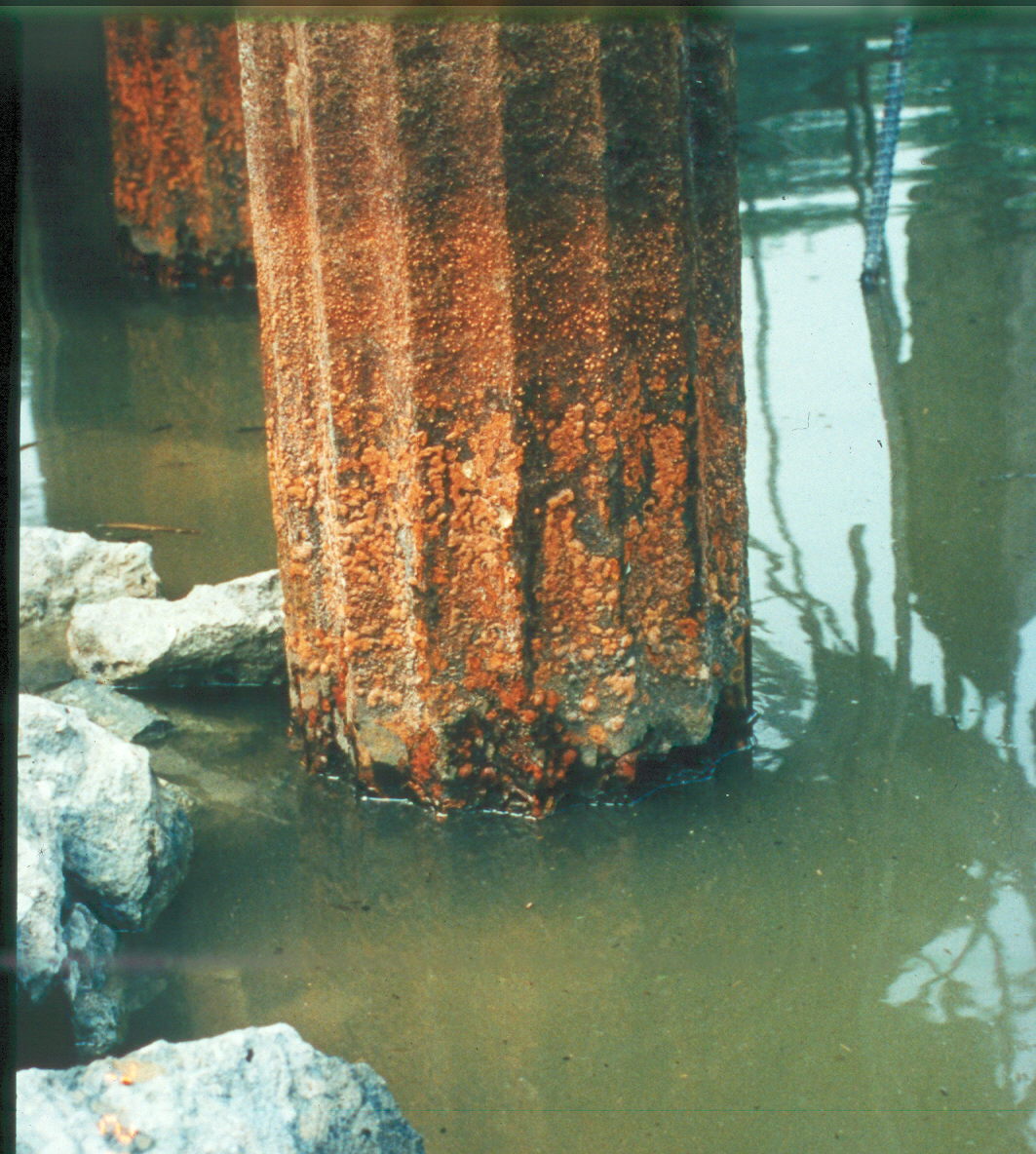

Corrosion at ground / water line

CAUSES

RECOMMENDED REPAIRS INITIAL COST EXPECTED LIFE
  • Clean and encase steel in concrete to at least 2 feet below ground/water line
    		•  $20/LF 20 years

    EXAMPLE

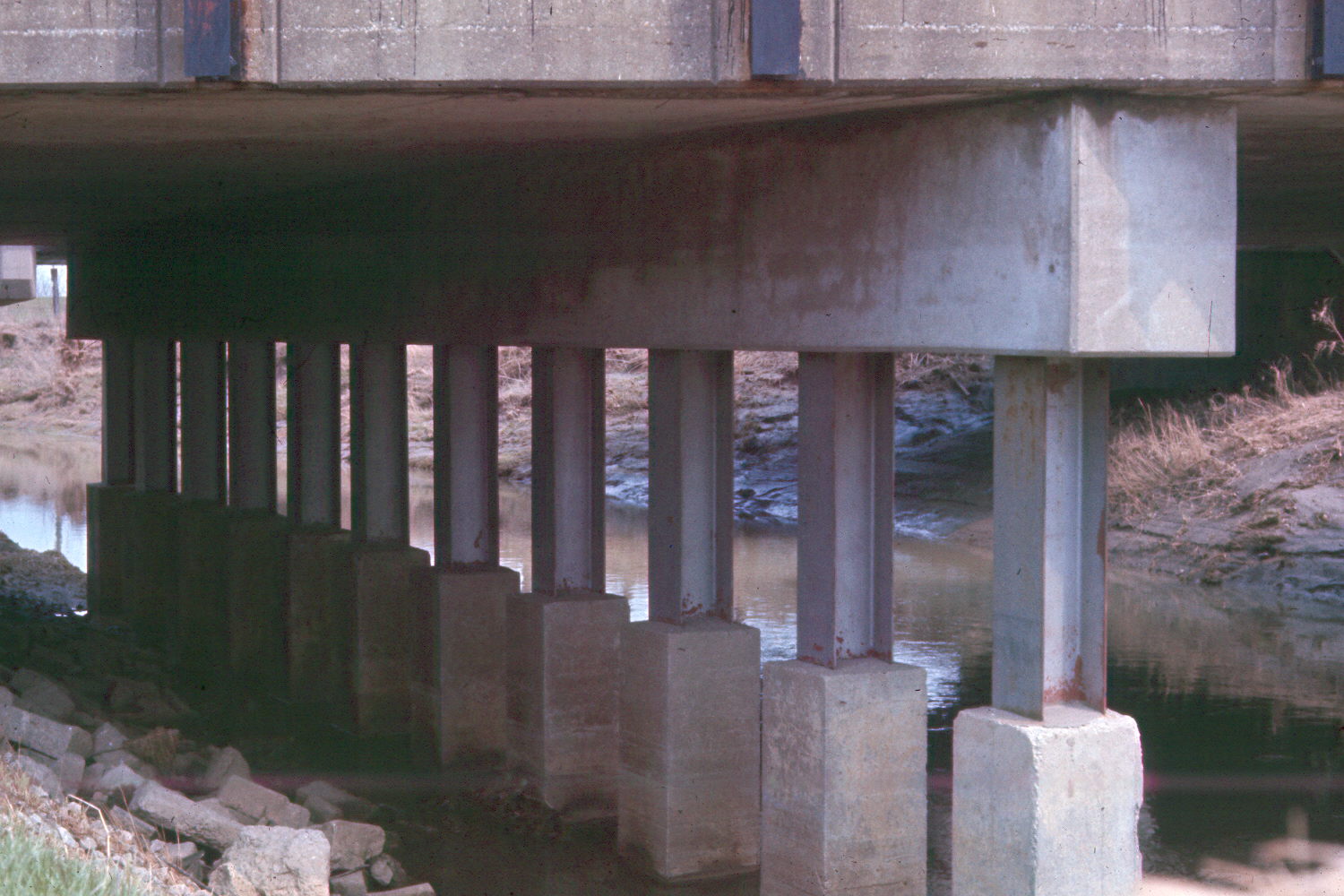

    Concrete encasement

    Encased with polyethylene pipe and filled with concrete
