703  AGGREGATE

703.01  General.

The following abbreviations apply:

CCS                Crushed Carbonate Stone.

ACBFS          Air Cooled Blast Furnace Slag

GS                   Granulated Slag

RACP             Reclaimed Asphalt Concrete Pavement

RPCC             Recycled Portland Cement Concrete

OH                  Open Hearth Slag

EAF                Electric Arc Furnace Slag

BOF                Basic Oxygen Furnace Slag

PCS                Petroleum Contaminated Soil



Pre-qualified Aggregate Supplier Program (Supplement 1069). Provide aggregate materials to the Ohio Department of Transportation from pre-qualified suppliers.

A.      Soundness.  When the major portion of the unsound material in a coarse aggregate acquires a mud-like condition when tested for soundness, ensure that the maximum loss for all uses is 5 percent.

B.      Stockpiles.  Use stockpiling and loading methods that permit ready identification of the aggregates and to minimize segregation.  Clean the sites for stockpiles before storing materials.  Do not remove aggregates from stockpiles within 1 foot (0.3 m) of the ground until final cleanup of the work.  Do not use material that has become mixed with foreign matter, wood or other size or grades of aggregates.

Handle aggregates in such a manner that the moisture content is reasonably uniform for each day’s run.

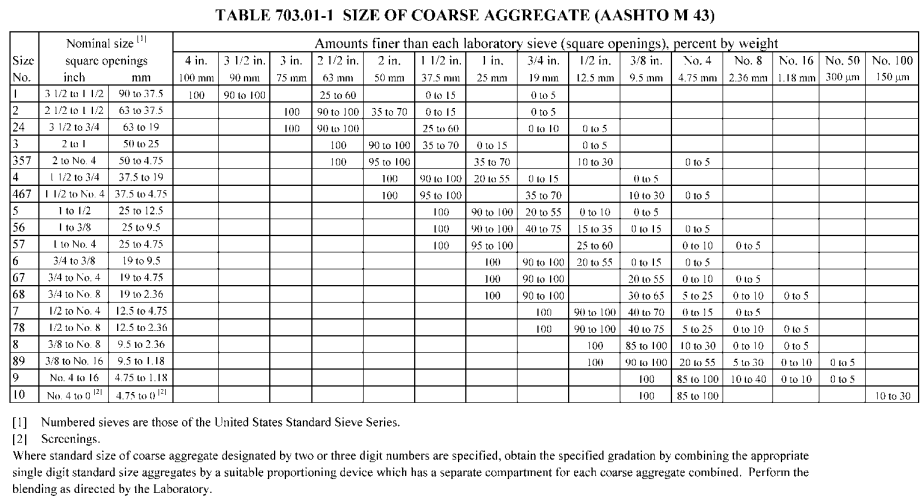

C.      Size.  Provide aggregate according to the size specified in the material specification, the construction item, or as shown in AASHTO M 43.

D.      Method of Test.  Provide aggregate tested by the following methods:

Amount finer than No. 200 (75 µm) sieve............... S1004

Clay lumps............................................................... S1017

Coal and lignite........................................ AASHTO T 113

Crushed pieces........................................... ASTM D 5821

Deleterious materials................................................ S1029

Effect of organic impurities on

strength of mortar...................................... AASHTO T 71

Liquid limit................................................ AASHTO T 89

Percent of wear, Los Angeles

.... abrasion test............... AASHTO T 96 or ASTM C 535

Plasticity index........................................... AASHTO T 90

Sieve analysis............................................... S1004, S1005

Sieve analysis of mineral filler................... AASHTO T 37

Sodium sulfate soundness test,

.... 5 cycle................................................. AASHTO T 104

Specific Gravity and percent absorption

.... for fine and coarse aggregate............................... S1031

Unit weight................................................ AASHTO T 19

Lightweight chert in aggregates............... AASHTO T 113

Sand equivalent........................................ AASHTO T 176

Uncompacted void content....................... AASHTO T 304

Flat and elongated....................................... ASTM D 4791

Rapid freezing and thawing..... ASTM C 666, Procedure B

Insoluble residue of carbonate

.... aggregates.............................................. ASTM D 3042

Compaction testing of Unbound Materials............... S1015

In place gradation sampling...................................... S1090

Sulfur leachate test.................................................... S1027

Soundness of aggregate by freezing

.... and thawing......................................... AASHTO T 103

Micro-Deval............................................ AASHTO T 327

Silicon Dioxide............................................. ASTM C 146

Sodium sulfate soundness test,

.... Rock slabs............................................. ASTM D 5240



E.      Steel Slag Aggregate.  Provide open-hearth (OH), basic oxygen furnace (BOF), and electric arc furnace (EAF) steel slag aggregate (known as steel slag) according to the following requirements when 703.04 aggregate for asphalt concrete base or 703.05 aggregate for asphalt intermediate course is specified.  Do not use OH, BOF, or EAF slag as the fine or coarse aggregate (virgin or recycled) for asphalt surface courses.

Supply all steel slag from sources according to Supplement 1071.  Furnish steel slag to a size meeting the specified grading requirements.  Provide steel slag aggregate meeting the specified coarse or fine aggregate quality requirements.  Ensure that measurements of soft pieces includes soft lime, lime oxide, or magnesia agglomerations or any foreign materials prone to rapid disintegration under construction processing and weathering conditions.  Ensure that additional testing beyond those listed are performed or required any time poor quality steel slag is suspected due to visual inspection, testing, or field performance problems.

Provide a letter of certification to the Engineer from the steel slag processor for every shipment of steel slag to the Contractor.  In addition the steel slag processor must provide the Engineer with the following:

Quality control records (created in accordance with Supplement 1071).

Documentation of the steel slag production, processing, and stockpile retrieval

Failure to follow the processor QC plan or continued problems with performance recognized by the Laboratory attributable to steel slag is cause for limiting steel slag use from that processor.

F.      Restrictions.  When an aggregate source is specially designated with a “SR or SRH” according to Guidelines for Maintaining Adequate Pavement Friction in Surface Pavements, the aggregate source will be restricted for use in surface pavement according to the methods in the guidelines.  The document, Guidelines for Maintaining Adequate Pavement Friction in Surface Pavements, is available on the OMM website under “Material Information by Category, Aggregate”, or the Office of Pavement Engineering’s website.







703.02   Aggregate for Portland Cement Concrete.

A.      Fine Aggregate.

1.      Provide fine aggregate consisting of natural sand or sand manufactured from stone.

2.      Sieve analysis.

Sieve Size

Total Percent Passing

3/8 inch   (9.5 mm)

100

No. 4       (4.75 mm)

95 to 100

No. 8       (2.36 mm)

70 to 100

No. 16     (1.18 mm)

38 to 80

No. 30     (600 µm)

18 to 60

No. 50     (300 µm)

5 to 30

No. 100   (150 µm)

0 to 10

No. 200   (75 µm)

0 to 5



Should the fineness modulus of a job control sample of sand from any source vary by more than 0.20 percent from that of the representative sample from that source, the sand may be rejected.

3.      Physical properties.



Maximum

Loss, sodium sulfate soundness test



   Item 305

12 %

   Items 255, 256, 451, 452, 511, 515, 519, 526, 602, 611, 608, 609, 610, 622, and 625

10 %

Aggregations of soil, silt, etc. by weight

0.5 %



When tested for the effect of organic impurities on strength of mortar, ensure that the compressive strength at 3 and 7 days of mortar made with untreated sand is not less than 95 percent of the compressive strength of mortar made with treated sand.

Provide fine aggregate for Items 255, 256, 451, 452, 526, and 511 deck slabs with at least 25 percent siliceous particles as determined by the acid insoluble residue test [ASTM D3042].  Ensure material has been tested and results are on file at the Laboratory.  For sources not tested and on file at the laboratory, submit certified test data from an AMRL accredited independent laboratory verifying the minimum 25 percent.

B.      Coarse Aggregate.

1.      Provide coarse aggregate consisting of washed gravel, CCS, or crushed ACBFS.

2.      Physical properties.

Percent of wear, Los Angeles test, maximum
(CCS or washed gravel)

40 %

Unit weight, compacted, minimum (slag)

70 lb/ft3    (1120 kg/m3)

Loss, sodium sulfate soundness test, maximum:



   Item 305

15 %

   Items 255, 256, 451, 452, 511, 519, 526, 602, 611, 608, 609, 610, 622, and 625

12 %

   Item 515

10 %



Deleterious substances shall not exceed the following:



Percent by Weight

Material Type

Super-Structure

All Other

Concrete

Soft pieces

2.0

3.0

Coal and lignite

0.25

1.0

Clay lumps

0.25

0.25

Pieces having a length greater than 5 times the average thickness

15

15

Shale and shaly material

0.5

1.0

Limonitic concretions

0.5

1.0

Alkali

0.5

1.0

Metallic particles

0.5

1.0

Chert, that disintegrates in 5 cycles of the soundness test

0.5

1.0



Additional requirement for ACBFS aggregate:

Total Sulfur as S, maximum (ASTM C114)

2.0%

3.      Amount passing the No. 200 (75 µm) sieve.  Ensure that the percent by weight of material passing the No. 200 (75 µm) sieve in the aggregate portion of the concrete mix does not exceed the following:



Percent by Weight

Material Type

Super-Structure

All Other Concrete

CCS and crushed ACBFS

3.4

3.8

Washed gravel

2.0

2.2



703.03  Fine Aggregate for Mortar or Grout.

A.      Provide fine aggregate consisting of natural sand or sand manufactured from stone or ACBFS.

B.      Sieve Analysis.



Natural Sand

Manufactured Sand

Sieve Size

Total Percent Passing

No. 4       (4.75 mm)

100

100

No. 8       (2.36 mm)

95 to 100

95 to 100

No. 50     (300 µm)

10 to 40

20 to 40

No. 100   (150 µm)

0 to 15

10 to 25

No. 200   (75 µm)

0 to 5

0 to 10



C.      Physical properties.



Maximum

Loss, sodium sulfate soundness test

10 %

Aggregations of soil, silt, etc. by weight

0.5 %



When tested for the effect of organic impurities on strength of mortar, ensure that the compressive strength of mortar made with untreated sand is not less than 95 percent of the compressive strength of mortar made with treated sand.

703.04  Aggregate for Asphalt Concrete Base (301 and 302).

A.      Provide coarse aggregate for asphalt concrete base used in combination with rigid pavement consisting of CCS, gravel, or crushed ACBFS.

Provide coarse aggregate for asphalt concrete base used in flexible pavements consisting of CCS, gravel (see note [1] in table below), or crushed ACBFS.  Provide fine aggregate for asphalt concrete base consisting of natural sand or sand manufactured from stone, gravel, or ACBFS.  Crushed Steel Slag (OH, EAF or BOF) conforming to 703.01.E and 401.03 may be used for coarse and fine aggregate in asphalt concrete base used in flexible pavements.

B.      Physical properties.

Percent of wear, Los Angeles test, maximum
(CCS or washed gravel)

50 %

Unit weight, compacted, minimum (slag)

65 lb/ft3

(1040 kg/m3)

Loss, sodium sulfate soundness test, maximum

15 %

Percent by weight of fractured pieces
(one or more faces), minimum

40 %

Micro-Deval Abrasion Loss test, maximum
(for coarse aggregate gravel only)



22 % [1]

[1]  If the MD value is greater than the specification limit conform to Supplement 1010.



Deleterious substances shall not exceed the following:

Material Type

Percent by Weight

Soft pieces

3.0

Coal and lignite

1.0

Clay lumps

0.25

Pieces having a length greater than 5 times the average thickness

15

Shale and shaly material

2.5

Chert that disintegrates in 5 cycles of the soundness test

2.5



703.05  Aggregate for Asphalt Concrete (Intermediate and Surface Courses), Prime Coat (408), Chip Coat (422), and Microsurfacing (421).

A.      Fine Aggregate.

1.      Provide fine aggregate consisting of natural sand or sand manufactured from stone, gravel, ACBFS or, for intermediate courses only, steel slag (OH, EAF or BOF) conforming to 703.01.E and 401.03.

2.      Sieve analysis.

Sieve Size

Total Percent Passing

3/8 inch   (9.5 mm)

100

No. 4       (4.75 mm)

90 to 100

No. 8       (2.36 mm)

65 to 100

No. 16     (1.18 mm)

40 to 85

No. 30     (600 µm)

20 to 60

No. 50     (300 µm)

7 to 40

No. 100   (150 µm)

0 to 20

No. 200   (75 µm)

0 to 10



3.      Physical properties.



Maximum

Loss, sodium sulfate soundness test

15 %

Aggregations of soil, silt, etc., by weight

0.5 %



B.      Coarse Aggregate.

1.      Provide coarse aggregate consisting of CCS, crushed ACBFS, washed gravel, or for intermediate courses only, steel slag (OH, EAF or BOF) conforming to 703.01.E and 401.03.

2.      Physical properties.

Percent of wear, Los Angeles test, maximum
(CCS or washed gravel)

40 %

Unit weight, compacted, minimum (slag):



   Asphalt Concrete, 408 and 422

70 lb/ft3

(1120 kg/m3)

Loss, sodium sulfate soundness test, maximum:



   Asphalt Concrete and 422

12 %

   421

15 %

Percent by weight of fractured pieces
(one or more faces), minimum

40 %

Micro-Deval Abrasion Loss test, maximum (for gravel only)

20 % [1]

[1]  If the MD value is greater than the specification limit conform to Supplement 1010.



Deleterious substances shall not exceed the following:

Material Type

Percent by Weight

Soft pieces

3.0

Coal and lignite

1.0

Clay lumps

0.25

Amount finer than No. 200 (75 µm) sieve

3.0

Pieces having a length greater than 5 times the average thickness

15

Shale and shaly material

2.5

Limonitic concretions

2.5

Alkali

2.5

Chert that disintegrates in 5 cycles of the soundness test

2.5



C.      General Requirements for Fine Aggregate.  For fine aggregate calculate each individual sieve fraction soundness loss and ensure that the fractional size does not exceed 13.0 percent for all surface courses, intermediate courses and any asphalt concrete course directly below an open graded friction course.

703.06  Sand Cover (407 and 408).

A.      Furnish sand cover consisting of natural sand or sand manufactured from stone or ACBFS.

B.      Sieve analysis.

Sieve Size

Total Percent Passing

No. 4       (4.75 mm)

90 to 100

No. 50     (300 µm)

7 to 40

No. 200   (75 µm)

0 to 10



703.07  Mineral Filler.

A.      Furnish mineral filler consisting of limestone dust, portland cement, or other inert mineral matter.  Ensure the mineral filler is thoroughly dry and free from lumps.

B.      Sieve analysis.

Sieve Size

Total Percent Passing

No. 30     (600 µm)

100

No. 50     (300 µm)

95 to 100

No. 200   (75 µm)

65 to 100



703.08  Granulated Slag.

A. Furnish Granulated Slag (GS) consisting of glassy, granular materials formed when molten blast furnace slag or electric-furnace slag is rapidly chilled, as by immersion in water.  The Department may reject material containing mill waste, cinders, large pieces of ungranulated slag, or other matter foreign to the production of slag in the normal operation of the blast furnace or electric furnace.

Furnish material of such nature that it will compact to the satisfaction of the Engineer.

B. Sieve analysis.

Sieve Size

Total Percent Passing

2 inch      (50 mm)

100

1 inch      (25 mm)

85 to 100

No. 100   (150 µm)

0 to 15



703.10  Screenings.

A. Furnish screenings for No. 10 size gravel, stone, or ACBFS.  Where crushed material is specified, ensure that it is crushed from material larger than the 1/2-inch (12.5 mm) sieve.

B. Physical properties.



Maximum

Loss, sodium sulfate soundness test

15 %





703.11  Structural Backfill for 611 Bedding and Backfill.  Furnish structural backfill for 611 bedding and backfill consisting of CCS, gravel, natural sand, sand manufactured from stone, foundry sand, ACBFS, GS, or RPCC.

Furnish ACBF Slag according to Supplement 1027.

Furnish granulated slag according to 703.08.

Do not use GS for Type 3 Structural Backfill.

The use of RPCC is permitted without wear testing or sodium soundness testing requirements if the Contractor provides information proving the material met this specification at the time of its original incorporation.  The use of RPCC is not permitted in conjunction with aluminum pipe or aluminum coated steel pipe.  Ensure that the RPCC use does not contain more than two percent steel.

Reclaimed asphalt concrete is not allowed for any bedding or backfill materials.

Use foundry sand if the material meets these requirements and meets the requirements of the Ohio EPA, Division of Surface Water, Policy 400.007 “Beneficial use of Non-Toxic Bottom Ash, Fly Ash and Spent Foundry Sand and Other Exempt Waste,” and all other regulations.  Ten days before using foundry sand on the project, submit written permission from the Ohio EPA to the Engineer.  Instead of written permission from the Ohio EPA, the Contractor may elect to have an independent consultant pre-qualified by ODOT in remedial design environmental site assessment review the proposed usage.  The consultant will provide all documentation utilized to ensure that the proposed usage is according to all Ohio EPA regulations.  Ensure that the consultant coordinates all EPA required meetings, documentation, and testing requirements.  Ensure that the consultant certifies this to the Department.

A. Structural Backfill Type 1 and 3.

1.  Furnish Type 1 structural backfill that meets the gradations of Items 304, 411, or 617, except 0 to 20 percent may pass the No. 200 sieve.  Furnish Type 3 structural backfill that meets the gradations of Size No. 57 or 67 from Table 703.01-1.

2.  Physical properties.

Percent of wear, Los Angeles test, maximum
(CCS or washed gravel)

50 %

Loss, sodium, sulfate soundness test, maximum

15 %

Percent by weight of fractured pieces
(one or more faces), minimum (Type 3 only)

90 %



Deleterious substances shall not exceed the following:

Material Type

Percent by weight

Shale and shaly material

5.0

Chert, that disintegrates in 5 cycles of the soundness test

5.0



Ensure that the portion of the material passing through the No. 40 (425 µm) sieve has a maximum liquid limit of 25 and a maximum plasticity index of 6.

Crush gravel for Type 3 from material retained on the 1/2 inch (12.5 mm) sieve.

B.      Structural Backfill Type 2.

1.      Furnish Type 2 structural backfill that meets the gradations of 703.05.A, 703.02.A, or one of the gradations below:

Sieve Size

Total Percent Passing

2 1/2 inch     (63 mm)

100

1 inch      (25.0 mm)

70 to 100

3/4 inch   (19.0 mm)

100

3/8 inch   (9.5 mm)

80 to 100

No. 4       (4.75 mm)

60 to 100

25 to 100

No. 8       (2.36 mm)

45 to 95

No. 40     (425 µm)

10 to 50

No. 50     (300 µm)

7 to 55

No. 200   (75 µm)

0 to 15

5 to 15



2.      Physical properties:

Percent of wear, Los Angeles test, maximum
(CCS or gravel)

50 %

Loss, sodium sulfate soundness test, maximum

15 %



Ensure that the portion of the material passing through the No. 40 (425 µm) sieve has a maximum liquid limit of 25 and a maximum plastic index of 6.

703.13  Coarse Aggregate for Items 305, 451 and 452.  In addition to the requirements of 703.02, the following aggregate requirements apply.

When the total combined quantity of the listed items is greater than 10,000 square yards (8000 m2), provide size No. 57 or 67 from Table 703.01-1.  If the total combined quantity of the listed items is less than 10,000 square yards (8000 m2), then provide one of the following sizes from Table 703.01-1:  No. 7, 78, 8, 57, or 67.

If gravel or limestone No. 57 or 67 size is selected in either of the above cases, then ensure that the coarse aggregate incorporated into the concrete is tested according to ASTM C 666, Procedure B.  Ensure that the area generated under the curve obtained by plotting the expansions of test specimens verses the number of test cycles does not exceed 2.05 at 350 or less cycles.

Ensure that the validity of results of freeze thaw-resistance testing is as outlined below:

Range of Area under Curve[1]

Status of Source Approval

0.00 to 1.00

Valid for two years from date approved[2]

1.01 to 2.05

Valid for one year from date approved[2]

2.06 to 4.00

Not Approved, one retest allowed[3]

> 4.00

Not Approved, no retesting allowed[3]

[1]  As measured at 350 cycles.

[2]  If a notable change in the properties of the aggregate originating from the affected source is determined from quality control testing, a retest of freeze-thaw resistance may be requested before the original expiration date.  The Laboratory will make the determination to retest.

[3]  Except as noted, the Department will not retest the material unless the producer of the material sends a written request to the Department with substantiation that significant changes in operation have been made (e.g., new processing equipment, material from a new ledge, etc.).



The Laboratory will maintain a list of approved sources.

703.14  Non Pavement Open-Hearth, Electric Arc Furnace, and Basic Oxygen Furnace Steel Slag Aggregate Use.  Provide steel slag according to the following requirements.

1.      Non-confined Applications. When using OH, EAF, and BOF slag in applications where the steel slag will not be confined, ensure that the slag meets the requirements in 703.14.A (deleterious substances and crushing), and in 703.14.B (aging and stockpiling requirements). Recycled steel slag from Department or non-Department projects may be used in applications where the recycled steel slag will not be confined.

2.      Confined Applications. When using OH, EAF, and BOF slag in applications where the steel slag will be confined, ensure the steel slag meets all requirements of 703.14. The use of recycled steel slag from Department or non-Department projects is not allowed in confined applications.

A.      Deleterious Substances (soft pieces). Deleterious substances include soft lime, lime oxide, or magnesia agglomerations or any foreign materials prone to rapid disintegration under construction processing and weathering conditions.

Furnish steel slag with less than 3 percent deleterious substances (soft pieces) by weight. The Department will use Supplement 1029 (hand crushing of soft pieces) to determine the soft pieces.

Crushing of steel slag is not allowed.

B.      Aging and Stockpiling Requirements. Stockpile and age all steel slag as follows:

1. Grade and stockpile the material into maximum size piles of 25,000 ton (23,000 metric tons). Before and during the stockpiling operation, add water to these materials to provide a uniform moisture content not less than their absorbed moisture. Ensure that the stockpile is maintained in a moist condition during the required stockpiling period.

2. Ensure that the producer mixes the stockpile when the outside surface of the pile has crusted over. The Department will inspect the stockpile every 2 months to ensure no crusting occurs. Do not mix frozen stockpile material. Suspend the aging period when the stockpile is frozen for more than one month.

3. Ensure that this aging period is at least 6 months in duration and starts over if any new material is added to the pile during the aging period.

C.      Identification of Steel Slag. Clear, definitive, and undisputable identification of the proposed material being steel slag is required.

The producer will show the Department evidence that the material supplied is steel slag. This information will consist of, but is not limited to, the following:

1.      Steel producer.

2.      Production dates.

3.      Production rates.

4.      Stockpiling dates.

5.      Type of steel furnace(s).

6.      All known Department and non-Department projects where the material was previously used.



This identification of steel slag and the source may be supplemented by other information approved by the Department or by using 10 years of good performance data. Ensure that the producer submits to the Department projects where the steel slag has been used without expansion or tufa problems. The Department will review the above projects as part of the identification approval process.

D.      Tufa Performance Verification of Steel Slag. Tufa is a precipitate form of calcium carbonate that can clog up the underdrain systems. Some steel slag sources clog up underdrain systems and some do not. Tufa performance verification is based on field performance and Department’s inspection of the underdrain systems.

Tufa performance verification is required.

Ensure that the producer submits past projects that are at least 10 years old that used the proposed steel slag source to the Department. The Department may consider projects that are less than 10 years old for tufa performance verification if it can be determined by the Department that the age of the steel slag incorporated in the project was 10 years old or greater. Ensure the producer supplies the Department with construction plans with the underdrains and underdrain outlets marked on the plans, or other suitable method, approved by the Department, showing the underdrain system. Ensure the producer marks the underdrain outlets in the field for inspection. The Department will inspect the underdrain systems for tufa deposits. If tufa deposits are found in the outlets or in the underdrain system, the Department will reject the steel slag source.

E.      Expansion Testing of Steel Slag. After the aging and stockpiling requirements are met, expansion testing is required for steel slag.

Perform expansion testing according to Pennsylvania Department of Transportation PTM No. 130, the ODOT equivalent to this test or expansion testing acceptable to the Department.

Ensure that the producer hires an independent AASHTO accredited and Department approved laboratory to perform at least half of the expansion testing. At the producer’s option, up to half of the required expansion testing may be performed by the producer’s laboratory. The Laboratory will observe the expansion testing and approve each independent and producer laboratory.

Perform expansion testing for every 2500 tons (2300 metric tons) or fraction thereof of the material stockpiled in accordance with 703.14.B. For steel slag less than 10 years old, retain a spilt portion of the expansion sample. Reduce the split sample to 5 lbs (2500 g) and test for   total percent MgO by X-Ray florescence and total percent periclase (hard burned MgO) by X-Ray diffraction.

The maximum allowable total expansion for each test is less than 0.50 percent. If any one test fails in the stockpile, the Department will reject the entire stockpile.

When sampling for expansion, ensure that the producer notifies the Department at least 48 hours before the sampling. The Department will verify that the sample came from the correct stockpile and take independent split samples, if required.

Submit the expansion test data and a suitably presented summary of the expansion test data to the Department for approval. Submit X-Ray florescence and X-Ray diffraction data to the Department. The Department reserves the right to perform independent testing to verify the laboratory results at any time.

The Department expansion test data takes precedence over the producer or independent laboratory expansion testing results in the event of a conflict. The Department will make the final determination on all conflicting data.

If the material fails the expansion testing, then stockpile the material for a minimum of two additional months from the date of last sampling and retest for expansion. Only materials that pass the expansion test are approved for use.

703.16  Suitable Materials for Embankment Construction.  Natural soil, natural granular material, granular material types, slag material, brick, shale, rock, random material, RACP, RPCC, or PCS as further defined below are suitable for use in embankment construction.  The Engineer will submit samples of soils not identified from the plan subsurface investigation, from borrow sources or materials appearing questionable in the field.

Furnish ACBFS according to Supplement 1027.

Furnish RPCC with the reinforcing steel cut to a maximum length of 1 inch (25 mm) outside the pieces.

Ensure that pieces of RACP do not exceed 4 inches (100 mm) in the largest dimension.

Furnish steel slag according to 703.14.

When using steel slag, RPCC, or RACP, completely blend it with at least 30 percent natural soil or natural granular material.

When using coal, completely blend it with natural soil or natural granular materials.  Make at least 90 percent of the blend natural soil or natural granular materials.

A.      Natural Soils.  Furnish natural soils as defined in 203.02.I and classified as Department Group Classifications A-4-a, A-4-b, A-6-a, A‑6‑b, and A-7-6 as further defined below:  Furnish soils with a maximum dry density of at least 90 pounds per cubic foot (1450 kg/m3).

Do not use soils having a liquid limit in excess of 65 or soils identified as Department Group Classifications A-5, or A-7-5 in the work.

B.      Granular Embankment Materials.  Furnish natural granular materials as defined in 203.02.H and classified as Department Group Classifications A-1-a, A-1-b, A-3, A-3-a, A-2-4, A-2-6, or A-2-7.

Do not use granular material classified as A-2-5.

C.      Granular Material Types.  Furnish CCS, gravel, ACBFS, durable sandstone, durable siltstone, GS, or blended natural soil or natural granular materials blended with OH, BOF, EAF, or RPCC as detailed above.  Furnish durable sandstone and siltstone with a slake durability index greater than 90 percent according to ASTM D 4644.

Except for GS, furnish the following gradations for the granular material types, by weight:

1.      Granular Material, Type A.  Furnish material having less than 25 percent by weight of the grains or particles passing the No. 200 (75 µm) sieve.

2.      Granular Material Type B.  For Item 204, furnish the gradation of Items 304, 411, or 617.  For Item 203, furnish the gradation of Items 304, 411, or 617 except 0 to 20 percent will be allowed to pass the No. 200 (75 μm) sieve.

3.      Granular Material Type C.  Furnish well graded material that meets the following gradation:

Sieve Size

Total Percent Passing

3 inch      (75 mm)

100

2 inch      (50 mm)

70 to 90

1/2 inch   (12.5 mm)

30 to 60

No. 200   (75 µm)

0 to 13



4.      Granular Material Type D.  Furnish the gradation of 100 percent passing the 8 inch (200 mm) sieve, less than 60 percent passing the 3 inch (76 mm) sieve, less than 40 percent passing the 3/4 inch (19 mm) sieve, and 0 to 20 percent passing the No. 200 (75 µm) sieve.

5.      Granular Material Type E.  Furnish any of the coarse aggregates from No. l through 67 inclusive on Table 703.01-1.

6.      Granular Material Type F.  Furnish material according to the following:

a.      Well graded material.

b.      A gradation with a top size from 8 inches (200 mm) to 3 inches (76 mm) and a bottom size of No. 200 (75 µm) sieve.

c.      An evenly graded material between the top and bottom size.

d.      Compactable, stable, and serves the intended use.



D.      Shale.  Furnish shale as defined in 203.02 and as further defined below.  Ensure that the shale is tested for durability to determine whether the shale is durable or nondurable shale.  Test the shale according to the following procedure:

1.      Obtain a piece of shale that is typical and representative of the rest of the shale.  The size of the piece should be about 6 inches (150 mm).  If a 6-inch (150 mm) sample is not available, then the shale is nondurable.

2.      Place the piece of shale in a bucket of water.  Examine the deterioration or slaking of the shale after 48 hours.  If the shale has deteriorated, then the shale is nondurable.

3.      If the shale has not deteriorated after being in water for 48 hours, then break down the shale over a 3/4 inch (19.0 mm) sieve by hand pressure.  If 75 percent or less of the shale is retained on the 3/4 inch (19.0 mm), then the shale is nondurable.

4.      If more than 75 percent of the shale is retained on the 3/4 inch (19.0 mm) sieve or, then perform a field test for durability.  The field test for durability consists of compacting the shale with six passes of a steel drum roller which has a minimum compaction force of 500 pounds per lineal inch (57 kN/mm) of roller drum width.  Provide documentation to the Engineer to verify the roller meets the compaction force requirement.

a.      If more than 40 percent of the shale breaks down, by visual inspection, then the shale is nondurable.

b.      If less than 40 percent of the shale breaks down, by visual inspection, then the shale is durable.



703.17  Aggregate Materials for 304.  Furnish aggregate that is CCS, crushed gravel, crushed ACBFS, GS, or steel slag.

Furnish GS according to the requirements of 703.08.

Furnish steel slag according to 703.14

Furnish ACBFS according to Supplement 1027.

Determine aggregate acceptance before incorporation into the work based on samples taken from stockpiles.

A.      Furnish CCS, crushed gravel, crushed ACBFS, and steel slag that meets the following gradation:

Sieve Size

Total Percent Passing

2 inch      (50 mm)

100

1 inch      (25.0 mm)

70 to 100

3/4 inch   (19.0 mm)

50 to 90

No. 4       (4.75 mm)

30 to 60

No. 30     (600 µm)

9 to 33

No. 200   (75 µm)

0 to 15 [1]

[1]  Furnish steel slag that has 0 to 10 percent passing through the No. 200 (75µm) sieve



Furnish gravel used under Item 304 that is crushed from material retained on the 1/2 inch (12.5 mm) sieve.

B.      Furnish CCS, crushed gravel, ACBFS, and steel slag that meets the physical property requirements:

Percent of wear, Los Angeles test, maximum
(CCS or crushed gravel)

50 %

Loss, sodium sulfate soundness test, maximum

15 %

Percent by weight of fractured pieces
(one or more faces), minimum

90 % [1]

[1]  Does not apply to steel slag





Ensure deleterious substances in CCS, crushed gravel, and ACBFS do not exceed the following:

Material Type

Percent by weight

Shale and shaly material

5.0

Chert, that disintegrates in 5 cycles of the soundness test

5.0



Except for GS, ensure that the portion of the material passing through the No. 40 (425 µm) sieve has a maximum liquid limit of 25 and a maximum plasticity index of 6.

703.18  Materials for Items 410, 411, and 617.  Furnish CCS, gravel, ACBFS, GS, OH slag, BOF slag, EAF slag, RPCC, or RACP for materials.

If RPCC and RACP are used, provide the following information:

1.      Specification item that the material was originally constructed under.

2.      The applicable material requirements of the original construction item.



If the original construction requirements meet or exceed the requirements of this specification, then the shale, sodium soundness and Los Angeles abrasion test for RACP and RPCC may be waived.  The plastic index and clay requirements are not required for RACP.  Use RPCC that is free of steel.

Furnish OH, BOF, and EAF slag according to 703.14

Use ACBFS according to Supplement 1027.

Furnish GS according to 703.08.

A.      Gradations.  Furnish for Items 617, 410, and 411 RACP materials according to the following gradation:

Sieve Size

Total Percent Passing

1 1/2 inch  (37.5 mm)

100

3/4 inch   (19.0 mm)

80 to 100

3/8 inch   (9.5 mm)

60 to 90

No. 4       (4.75 mm)

30 to 90

No. 30     (600 µm)

3 to 20



Except for GS and RACP, use the following gradations for Items 410, 411, and 617.

Furnish materials for Item 410  according to one of the following gradations:

Sieve Size

Type A

Type B

Type C

Total Percent Passing



1 1/2 inch   (37.5 mm)

100

100

Size

No. 4 or 57

from

Table

703.01-1

1 inch      (25.0 mm)

90 to 100

75 to 100

3/4 inch   (19.0 mm)

60 to 100

60 to 100

3/8 inch   (9.5 mm)

40 to 60

35 to 75

No. 4       (4.75 mm)

15 to 30

30 to 60



          Do not use RACP for Type C material.

Furnish materials for Item 411 according to the following gradation:

Sieve Size

Total Percent Passing

1 1/2 inch   (37.5 mm)

100

1 inch      (25.0 mm)

75 to 100

3/4 inch   (19.0 mm)

60 to 100

3/8 inch   (9.5 mm)

35 to 75

No. 4       (4.75 mm)

30 to 60

No. 30     (600 µm)

7 to 30

No. 200   (75 µm)

3 to 15



Furnish materials for Item 617 according to the following gradation:

Sieve Size

Total Percent Passing

1 inch      (25.0 mm)

100

3/4 inch   (19.0 mm)

60 to 100

3/8 inch   (9.5 mm)

35 to 75

No. 4       (4.75 mm)

30 to 60

No. 30     (600 µm)

9 to 33

No. 200   (75 µm)

0 to 15



B.      Physical properties.



Item

410

Item

411

Item

617

Percent of wear, Los Angeles test, maximum

50 %

Loss, sodium sulfate soundness test, maximum

15 %

Percent by weight of fractured pieces
(one or more faces), minimum

90 %

Gravel used, portion retained on a No. 4 (4.75 mm) sieve (one or more faces) minimum crushed

40 %

Maximum plasticity index of material passing No. 40 (425 µm) sieve

6



Deleterious substances shall not exceed the following:

Material Type

Percent by weight

Item

410

Item

411

Item

617

Shale and shaly material

5 % [1]

12 %

Clay

10 %

[1]  Where the major portion of the material in a coarse aggregate, from a source on record at the Laboratory, has shown the characteristics of acquiring a mud-like condition when tested for soundness, test it for soundness and ensure that the maximum loss is 5 percent.



703.19   Rock and Aggregate Materials for Item 601.

A.      Crushed Aggregate Slope Protection and Filter Aggregate for Dump Rock Fill.  Furnish crushed gravel, limestone, sandstone, RPCC, ACBFS, OH slag, BOF slag, or EAF slag for crushed aggregate slope protection and filter aggregate for dump rock fill.

Use ACBFS slag according to Supplement 1027.

Use OH, BOF, and EAF slag according to 703.14

Furnish Size No. 1 or 2 from Table 703.01-1, or according to the following gradation for crushed aggregate slope protection:

Sieve Size

Total Percent Passing

4 inch      (100 mm)

100

3 1/2 inch    (90 mm)

90 to 100

2 1/2 inch    (63 mm)

25 to 90

1 1/2 inch    (37.5 mm)

0 to 25

3/4 inch   (19.0 mm)

0 to 10



For a filter for rock channel protection, use Size No. 3 or 4 from Table 703.01-1.

Physical properties.

Percent of wear, Los Angeles Test, maximum
(CCS or gravel)

50 %

Loss, sodium sulfate soundness test, maximum
(except for RPCC)

15 %

Percent by weight of fractured pieces
minimum (CCS or gravel)

90 %

Loss for RPCC, AASHTO T 103 Soundness of Aggregates by Freezing and Thawing

20 % [1]

[1]  Use Method C using 25 cycles.





B.      Dumped Rock Fill and Rock Channel Protection.  Furnish gravel, broken recycled portland cement concrete (RPCC), broken sandstone, broken siltstone, and broken limestone for dumped rock fill and rock channel protection.  Furnish sandstone, siltstone, and limestone that is free of laminations, seams, and fractures, or injury due to blasting.

Except for RPCC, test for soundness according to ASTM D 5240.  Use materials having a maximum 30 percent single slab loss and a maximum 20 percent cumulative loss.  Slab heights and lengths will be a minimum of 8 inches.  For RPCC, test for soundness according to AASHTO T 103 as stated in 703.18.A.

The Department may waive testing when the stone source has a known durability history.

Do not use thin, slab-like pieces, or any pieces having a dimension larger than 36 inches (1 m).  Do not use RPCC with reinforcing steel protruding more than 1 inch (25 mm) beyond the outside surface of the concrete pieces.

Furnish dumped rock fill and rock channel protection materials consisting of the four material types defined below:

1.      Type A material has at least 85 percent of the total material by weight larger than an 18-inch (0.5 m) but less than a 30-inch (0.8 m) square opening and at least 50 percent of the total material by weight larger than a 24-inch (0.6 m) square opening.  Furnish material smaller than an 18-inch (0.5 m) square opening that consists predominantly of rock spalls and rock fines, and that is free of soil.

2.      Type B material has at least 85 percent of the total material by weight larger than a 12-inch (0.3 m) but less than a 24-inch (0.6 m) square opening and at least 50 percent of the total material by weight larger than an 18-inch (0.5 m) square opening.  Furnish material smaller than a 12-inch (0.3 m) square opening that consists predominantly of rock spalls and rock fines, and that is free of soil.

3.      Type C material has at least 85 percent of the total material by weight larger than a 6-inch (150 mm) but less than an 18-inch (0.5 m) square opening and at least 50 percent of the total material by weight larger than a 12-inch (0.3 m) square opening.  Furnish material smaller than a 6-inch (150 mm) square opening that consists predominantly of rock spalls and rock fines, and that is free of soil.

4.      Type D material has at least 85 percent of the total material by weight larger than a 3-inch (75 mm) but less than a 12-inch (0.3 m) square opening and at least 50 percent of the total material by weight larger than a 6-inch (150 mm) square opening.  Furnish material smaller than a 3-inch (75 mm) square opening that consists predominantly of rock spalls and rock fines, and that is free of soil.
