Structural Benefits of Concrete Paving of Steel Culvert Inverts
Start Date: November 1, 2015
End Date: June 1, 2016
Project Completed
Researcher: Dr. Teruhisa Masada, Ohio University
To download a copy of the fact sheet and final report, click here.

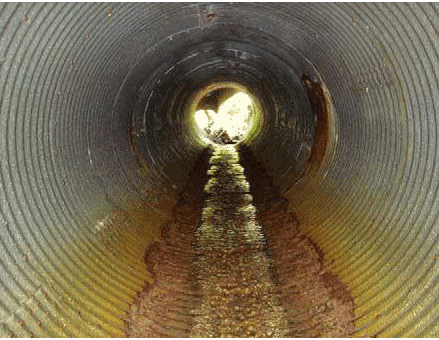

Over time, a steel culvert invert will experience invert material loss due to corrosion and abrasive flow. The material loss progresses from minor perforations to ultimate invert loss if corrective action to protect the culvert invert is not taken. Invert material loss can lead to erosion of the supporting backfill which is an integral component for the structural integrity of a steel culvert. A common corrective maintenance action is to place 4-6 inches of concrete onto the invert of the steel culvert for the bottom 1/3 of the rise of the culvert. Light reinforcing mesh is attached to the culvert and concrete is poured and shaped to the bottom of the barrel in most applications. If total invert loss or significant backfill erosion has occurred and the exiting shape is unaffected, additional measures may be required such as: additional reinforcing steel and replacement of the backfill with cementitious materials.
This corrective maintenance action is cost effective and widely used because it seals the culvert invert, prevents backfill loss, and provides a protective layer between the abrasive flow and the steel material. However, the impact of this corrective maintenance action on the structural integrity of the culvert is unknown. Additionally, it is unknown if additional reinforcement is required when there is total invert loss and the existing shape is unaffected. While it is clear that the pipe has been weakened by the loss of the steel section, it is unclear if the stiffness of the added concrete compensates and restores the culvert to its original strength. Furthermore, once the floor is sealed with concrete, inspectors are unable to visually confirm additional damage to the remaining steel. This could adversely impact load capacity ratings causing some culverts to receive a higher load rating than is actually warranted. Research is needed to verify the viability of this practice and provide engineers with scientifically-based guidance on its proper application.
The goal of this research is to enhance the understanding of the mechanics of steel culverts and the impact that this common corrective maintenance action has on the structural integrity of the steel culvert. The objectives of this research are to: (1) determine and quantify the influence the repair has on the structural integrity of the culvert system, (2) determine if additional reinforcing steel is required when there is total invert loss, and (3) develop a scientifically-based, cost effective, repeatable methodology engineers can use to evaluate repairs to steel culvert inverts with deteriorated inverts. The results of this research may influence ODOT's current standard specifications for metal culverts (item 611.11). The findings will enable engineers to make more informed decisions on which culverts are ripe for the invert rehabilitation and the most appropriate application of this practice.
